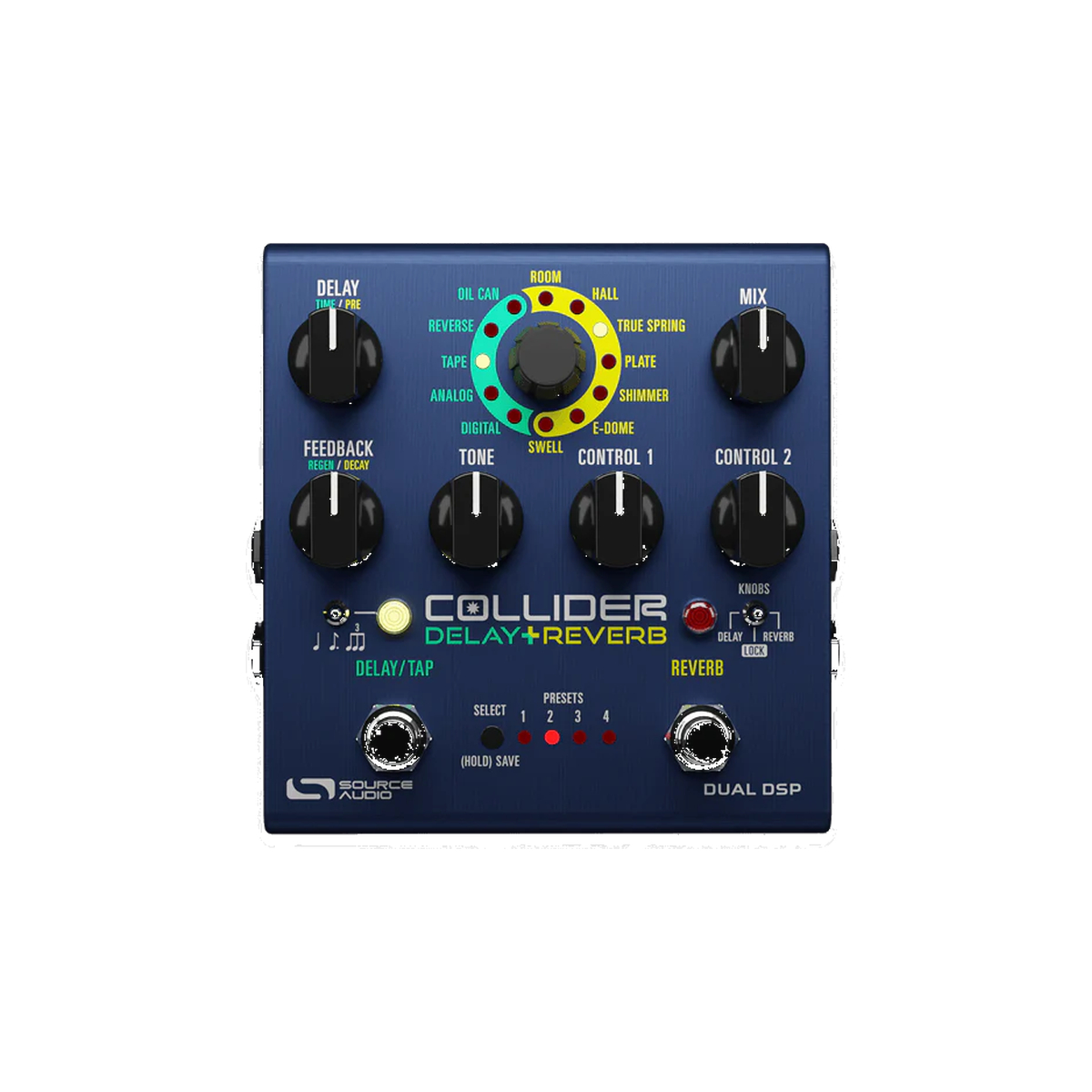

The Source Audio Collider combines two of the most essential ambient effects—delay and reverb—into one powerful stereo pedal. Engineered for professional tone sculpting, it features dual high-performance 56-bit processors capable of running two engines simultaneously, giving you studio-quality sound in a compact format.
Inside the Collider are twelve distinct algorithms: five delay types (Digital, Analog, Tape, Reverse, and Oil-Can) and seven reverb types (Room, Hall, Spring, Plate, Shimmer, E-Dome, and Swell). You can run delay and reverb together, or even dual delays or dual reverbs, all in full stereo. The intuitive interface, dedicated footswitches, and tap-tempo function make it a versatile creative tool for live performance and studio use.
The pedal also includes MIDI control, expression pedal input, USB connectivity for editing via the Neuro app, and up to 128 savable presets. Built in a rugged anodized aluminum enclosure with true, buffered, or trails bypass options, the Collider delivers pristine audio fidelity and deep control. It’s a dream unit for guitarists, producers, and ambient explorers who want maximum versatility without sacrificing tone.
Body & Construction
- Rugged anodized aluminum chassis
- Dimensions: 4.5″ × 4.5″ × 2″ (11.4 × 11.4 × 5.1 cm)
- Weight: 0.45 kg (1 lb)
- Stereo ¼″ inputs and outputs with analog dry-through
- True, buffered, or trails bypass modes
Controls & Interface
- Time / Decay: Sets delay time or reverb length
- Feedback / Repeats: Controls the number of echoes or reverb intensity
- Tone / Modulation: Adjusts brightness or modulation depth
- Control 1 & Control 2: Assignable to engine-specific parameters
- Mix: Balances wet/dry signal
- Engine Selector: Chooses delay or reverb type
- Dual Footswitches: Independent control for delay and reverb, with tap tempo on the delay side
- Subdivision selector for rhythmic precision
- Lock function prevents accidental parameter changes
Other Details
- Power: 9 V DC (center-negative), 280–300 mA current draw
- Audio conversion: 24-bit with 56-bit internal processing
- Presets: 8 onboard, up to 128 via MIDI
- Expression and external switch input
- Full MIDI In/Thru and USB connectivity for preset editing and firmware updates
- Dynamic range: 110 dB for pristine signal quality
