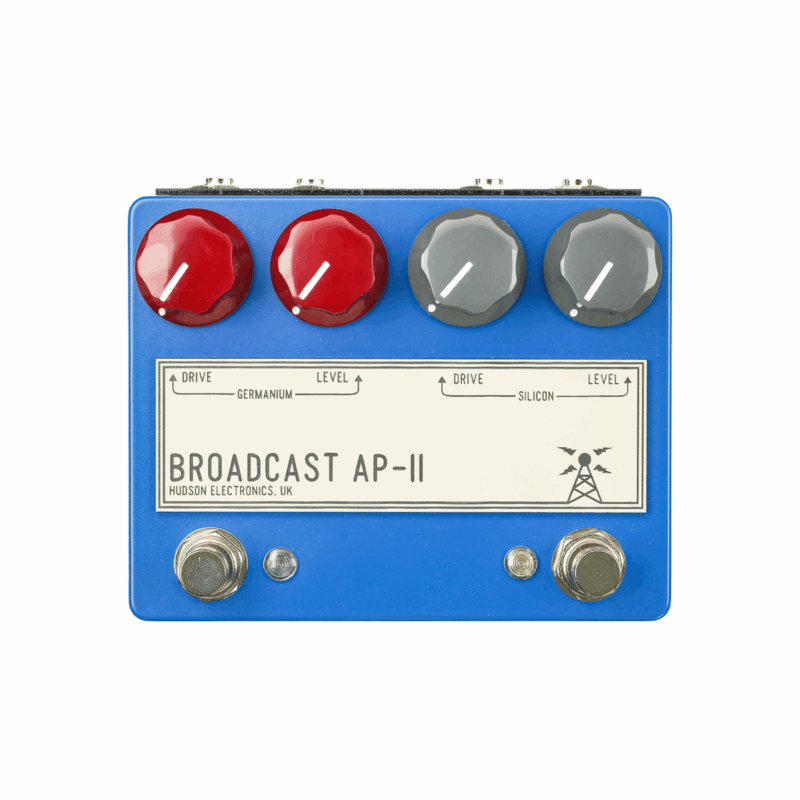

The Hudson Broadcast AP-II is a dual-channel preamp pedal designed in collaboration with Ariel Posen. It blends vintage console warmth with modern versatility, featuring two independent circuits that can run separately or cascade together for rich, dynamic tone. Perfect for players seeking everything from subtle drive to saturated, harmonically complex distortion.
The left channel is based on a silicon transistor and transformer design, offering smooth, dark, rounded tones reminiscent of old broadcast equipment. The right channel uses a germanium transistor without a transformer, producing a brighter, more open response with a touch of grit. Both sides have dedicated Gain and Level controls, and a built-in send/return loop lets you insert other pedals between them for advanced signal routing.
Built for professional performance, the Broadcast AP-II supports 9 V to 24 V DC operation for increased headroom and features true bypass switching. Four internal trim pots allow precise adjustment of gain structure and low-cut filtering. Whether used as a studio preamp, live boost, or dynamic drive pedal, the AP-II delivers the full tonal range Hudson Electronics is known for.
Body & Construction
- Rugged metal enclosure with top-mounted jacks
- Dimensions: approximately 120 × 100 × 60 mm
- Weight: around 450 g
- Designed and built in the UK
Controls & Interface
- Silicon Channel: Drive and Level for gain and volume control
- Germanium Channel: Drive and Level for separate gain structure
- Send/Return Loop: Insert external pedals between the two channels
- Internal Trim Pots: Adjust gain and low-cut per channel for fine tonal control
Other Details
- Power: 9–24 V DC (center-negative)
- Current draw: ~50 mA
- True bypass switching for clean signal integrity
- Can be used with guitar, bass, or studio instruments
