The Diamond Memory Lane STM32 redefines classic delay tone with a perfect balance of analog warmth and digital precision. Built around Diamond’s proprietary dBBD (digital Bucket Brigade Delay) engine, it captures the lush, organic character of vintage BBD delays while extending clarity, headroom, and delay time. With up to 2.4 seconds of delay, this pedal delivers everything from tight slapbacks to expansive ambient echoes, all with studio-grade fidelity.
The Memory Lane STM32 offers four selectable modes—MLjr, Vintage, Galloping 2-Head, and Ambient 3-Head—each crafted for distinct delay textures. Tap tempo and rhythmic subdivisions allow for precise timing, while modulation controls bring in movement and character. A “Doubler” function and flexible bypass options add versatility, letting you shape your delay exactly how you want it. Whether in the studio or on stage, this pedal delivers the dimensional depth and musical feel that made the original Memory Lane a legend.
Handmade in Canada, the Memory Lane STM32 combines premium components with modern reliability. Its rugged metal enclosure, top-mounted jacks, and efficient power draw make it a professional’s choice for any pedalboard. The mix of classic tone and forward-thinking technology ensures this delay sounds as beautiful as it performs.
Body & Construction

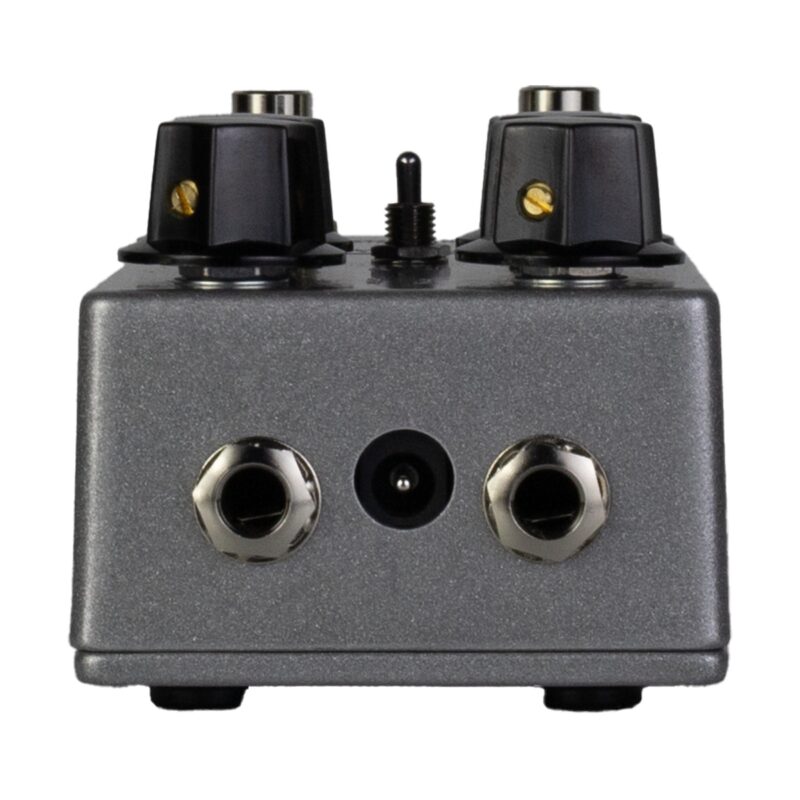

- Durable metal chassis with top-mounted jacks
- Dimensions: 4.8″ × 2.64″ × 1.58″ (122 × 67 × 40 mm)
- Weight: approximately 300 g
- Input impedance: >1 MΩ
- Output impedance: <10 kΩ
- Designed and built in Montréal, Canada

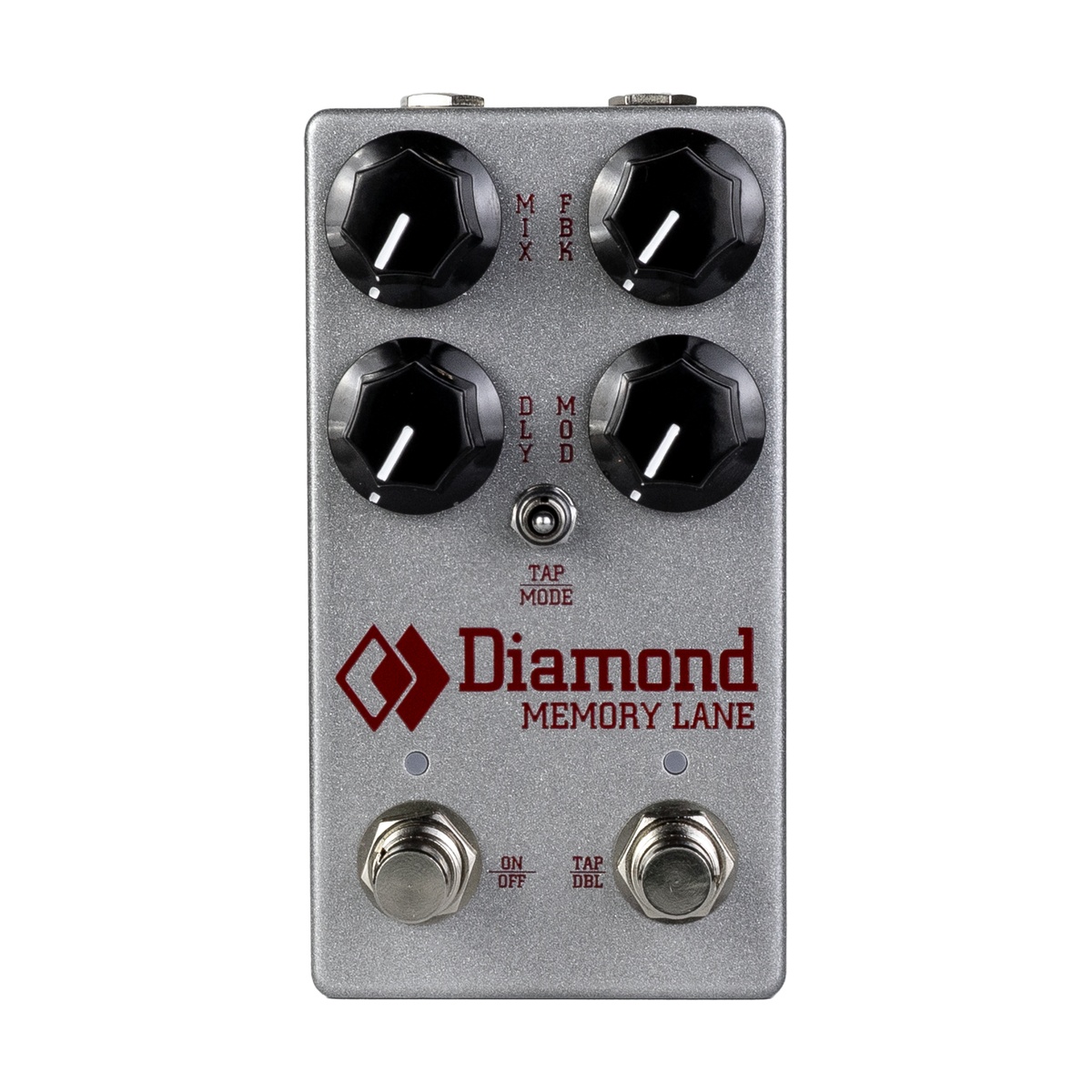

Controls & Interface
- Delay Time: Adjusts delay from short slapback to 2.4 seconds
- Feedback: Controls repeat intensity and number of echoes
- Mix: Balances dry and delayed signal
- Modulation: Adds subtle or deep movement to the delay tail
- Mode Selector: Choose between MLjr, Vintage, Galloping 2-Head, and Ambient 3-Head modes
- Tap/Mode Footswitch: Tap tempo and mode control
- On/Off Footswitch: Selectable true or buffered bypass with trails
Other Details
- Power: 9–15 V DC, center-negative
- Current draw: approximately 50 mA at 9 V
- Delay range: 25 ms to 2.4 s
- Trails or true-bypass operation
- Crafted for guitar, synth, or any instrument requiring rich, musical delay
